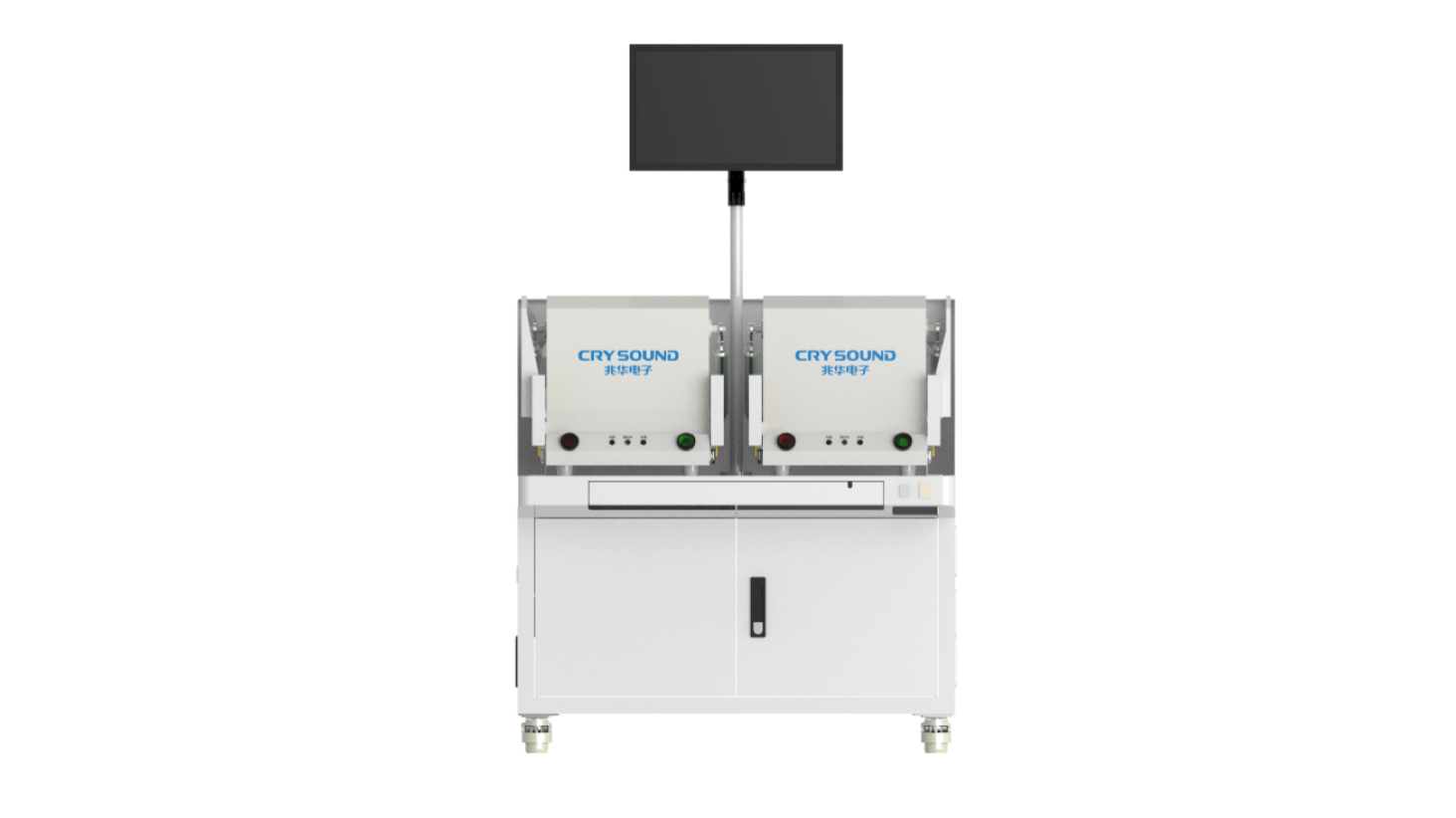

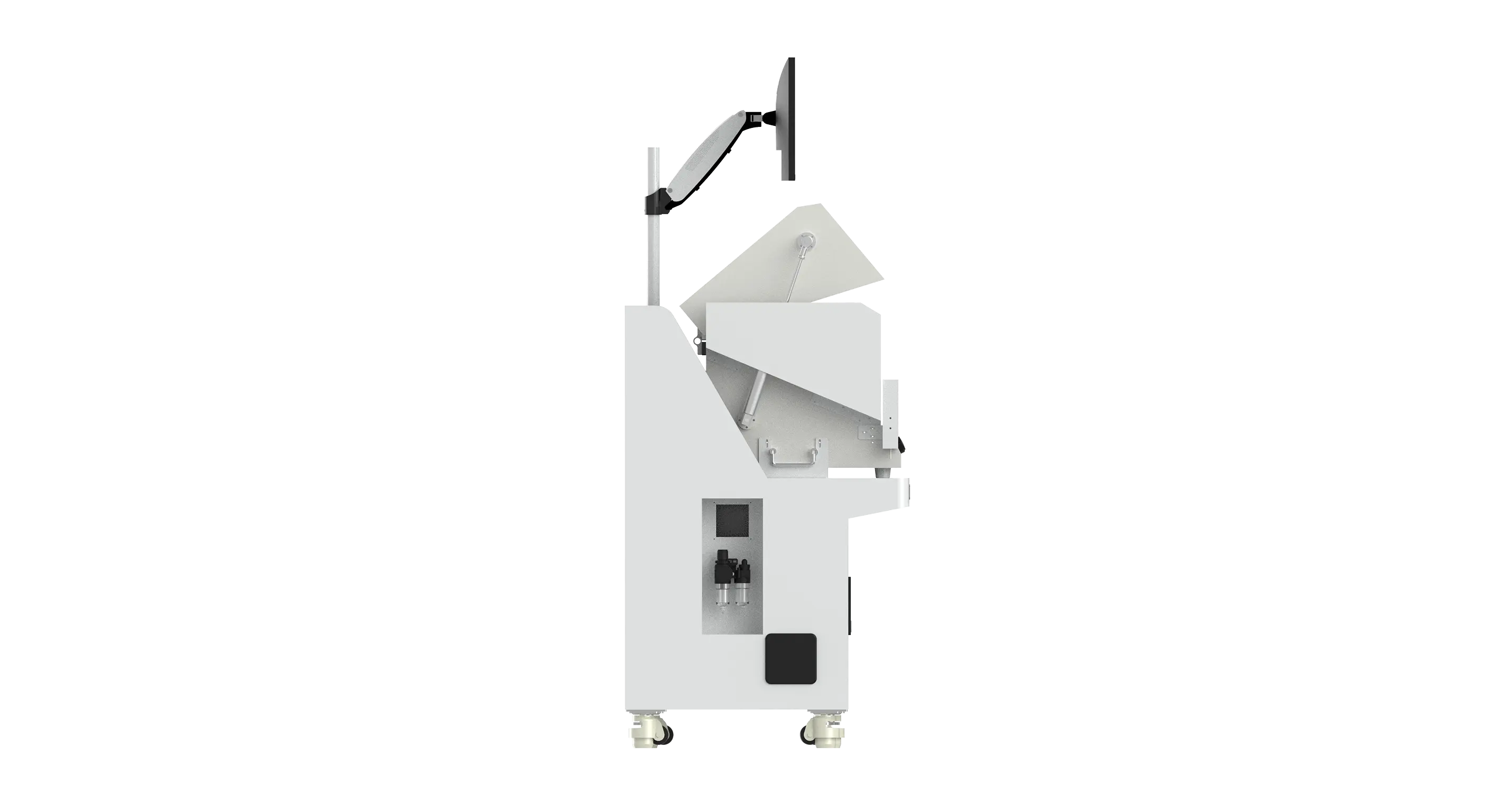

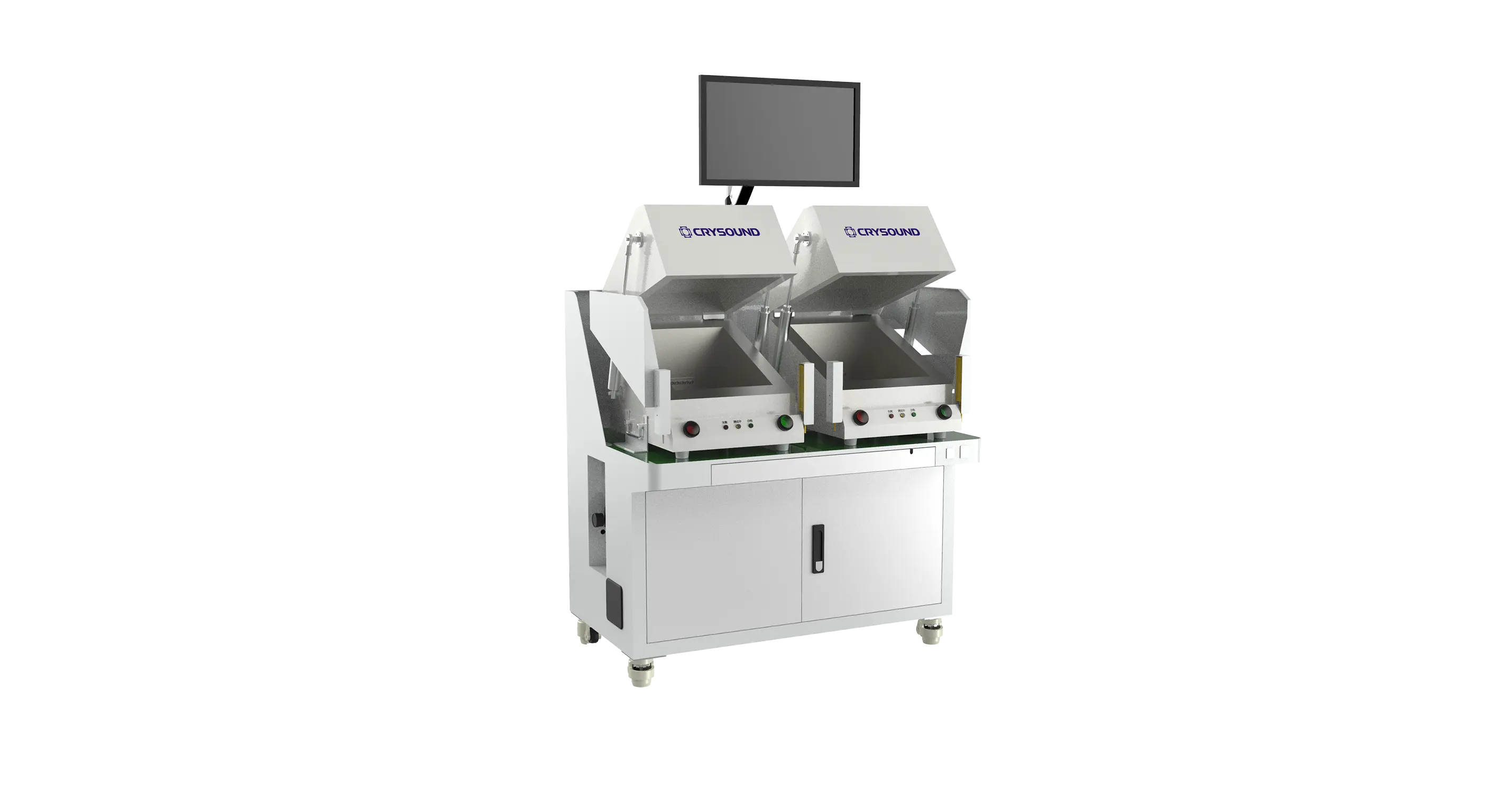

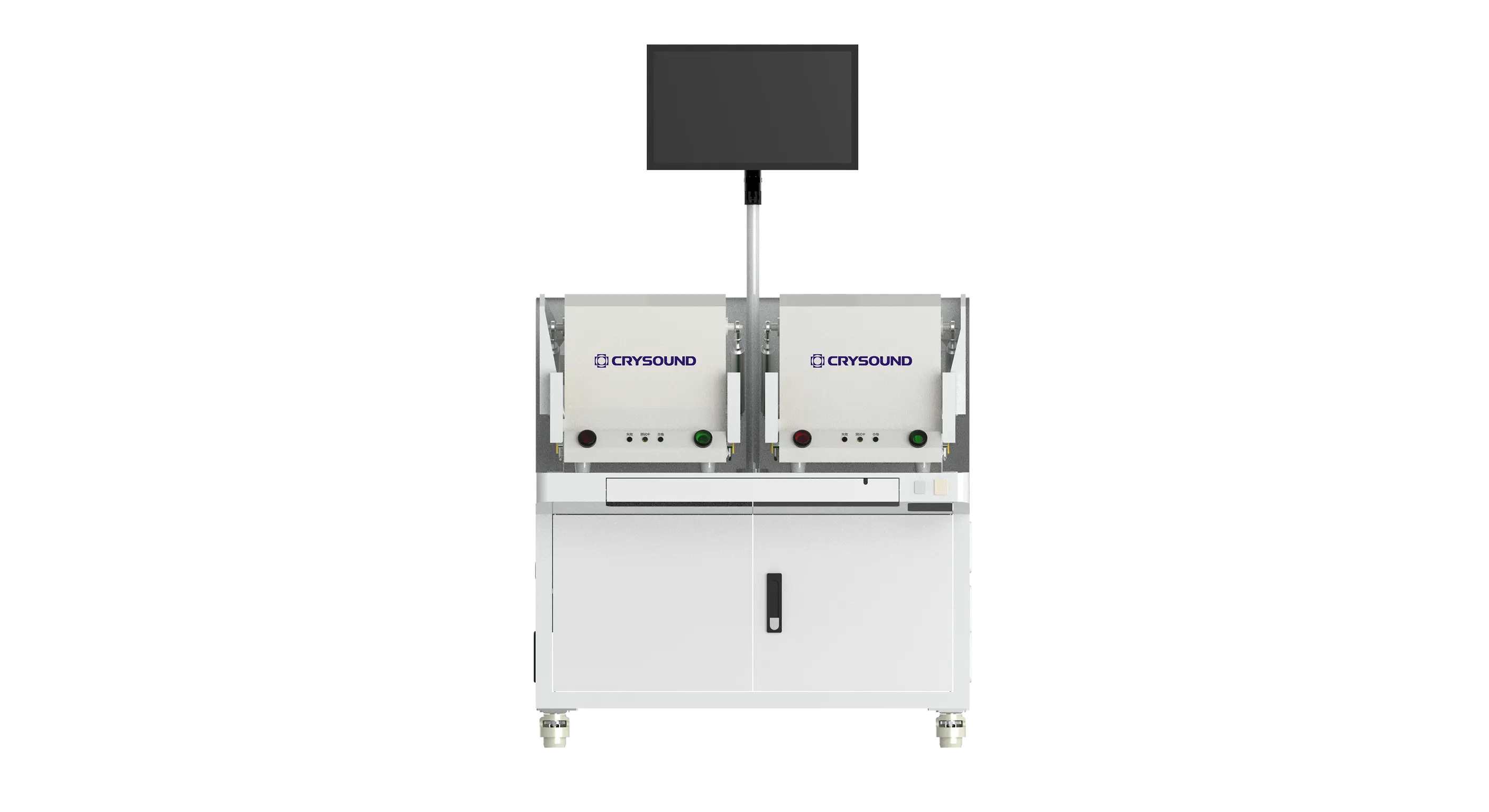

CRY710 Pneumatic Acoustic Test Chamber
CRY710 Pneumatic Acoustic Test Chamber
The CRY710 Pneumatic Shielding Box, constructed from welded steel plates, provides robust RF shielding for testing Bluetooth, Wi-Fi, and other devices, effectively preventing interference between production lines. It also offers a soundproof environment for assessing acoustic performance. The pneumatic door can be controlled via the serial port.

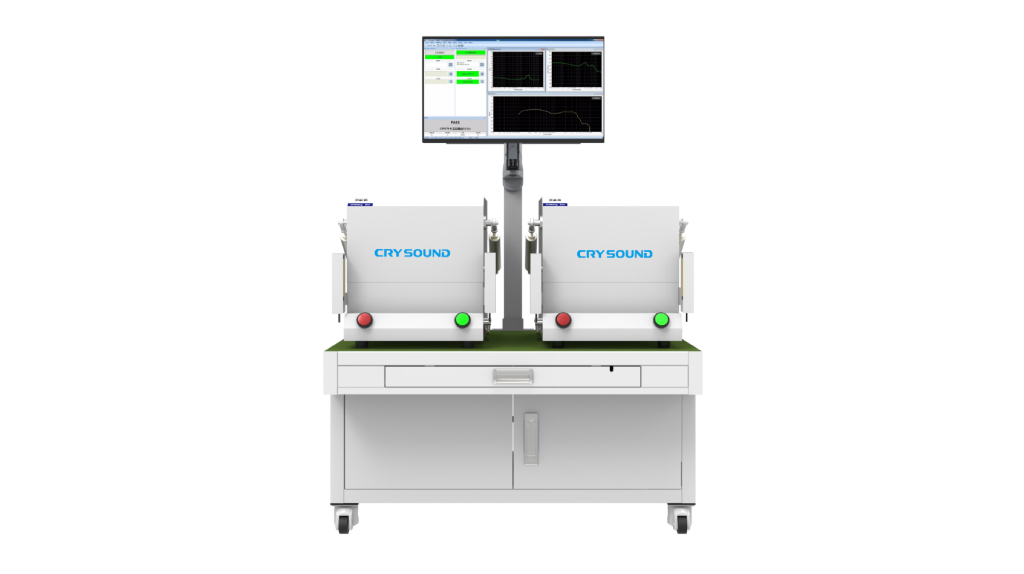

For quadruplex audio testing of TWS headphones, combining two CRY710 boxes with a CRY6151B enables a single operator to manage two test stations simultaneously, significantly reducing labor costs.
- Pneumatic
- Cost-effective

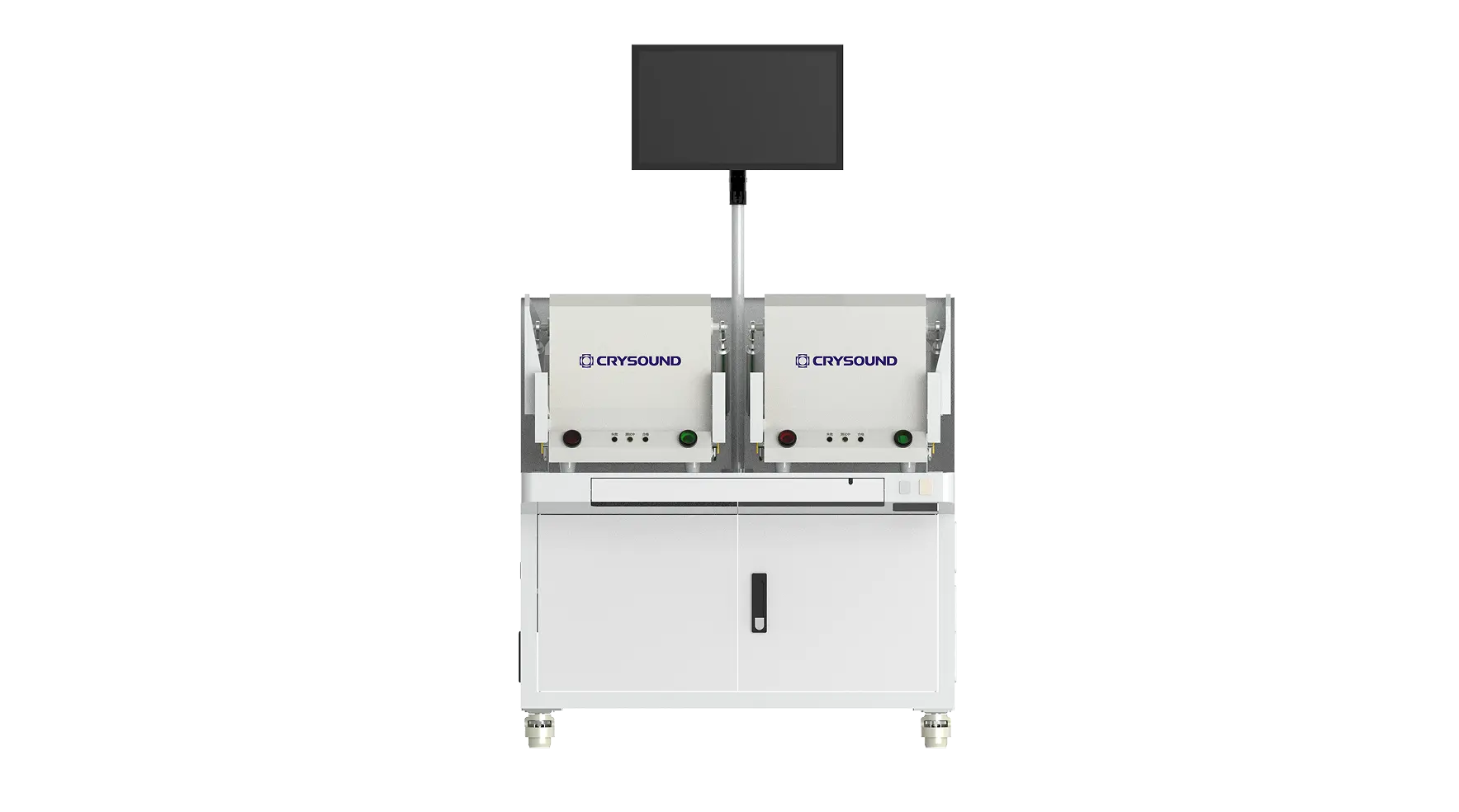

Features
- User-friendly shell type test box for sitting operation.
- Highly effective shielding - up to 70dB.
- Grating installed for safety protection.
- Its cost-effectiveness and outstanding performance make it an ideal choice for testing TWS headphones, watches, and AF/RF devices.
Features
- User-friendly shell type test box for sitting operation.
- Highly effective shielding - up to 70dB.
- Grating installed for safety protection.
- Its cost-effectiveness and outstanding performance make it an ideal choice for testing TWS headphones, watches, and AF/RF devices.
Technical Specifications
Specifications
Color
Color
White
Weight
Weight
About 158kg
Outer dimension
Outer dimension
1050(L)*700(W)*1090(H)mm
Inner dimension
Inner dimension
320(L)*364(W)*295(H)mm
Electrical Specifications
Operating voltage
Operating voltage
AC 100-240V, 50/60Hz
Rated power
Rated power
15W
Pneumatic pressure
Pneumatic pressure
>5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance
RF shielding performance
0.8～6 GHz>70 dB
Audio isolation performance
Audio isolation performance
200Hz～500Hz>28dB, 630Hz～800Hz>35dB, Above 1000Hz>40dB(1/3 octave)
Noise floor
Noise floor
45 dBA, exterior noise≤80dBA (No shock or vibration)
