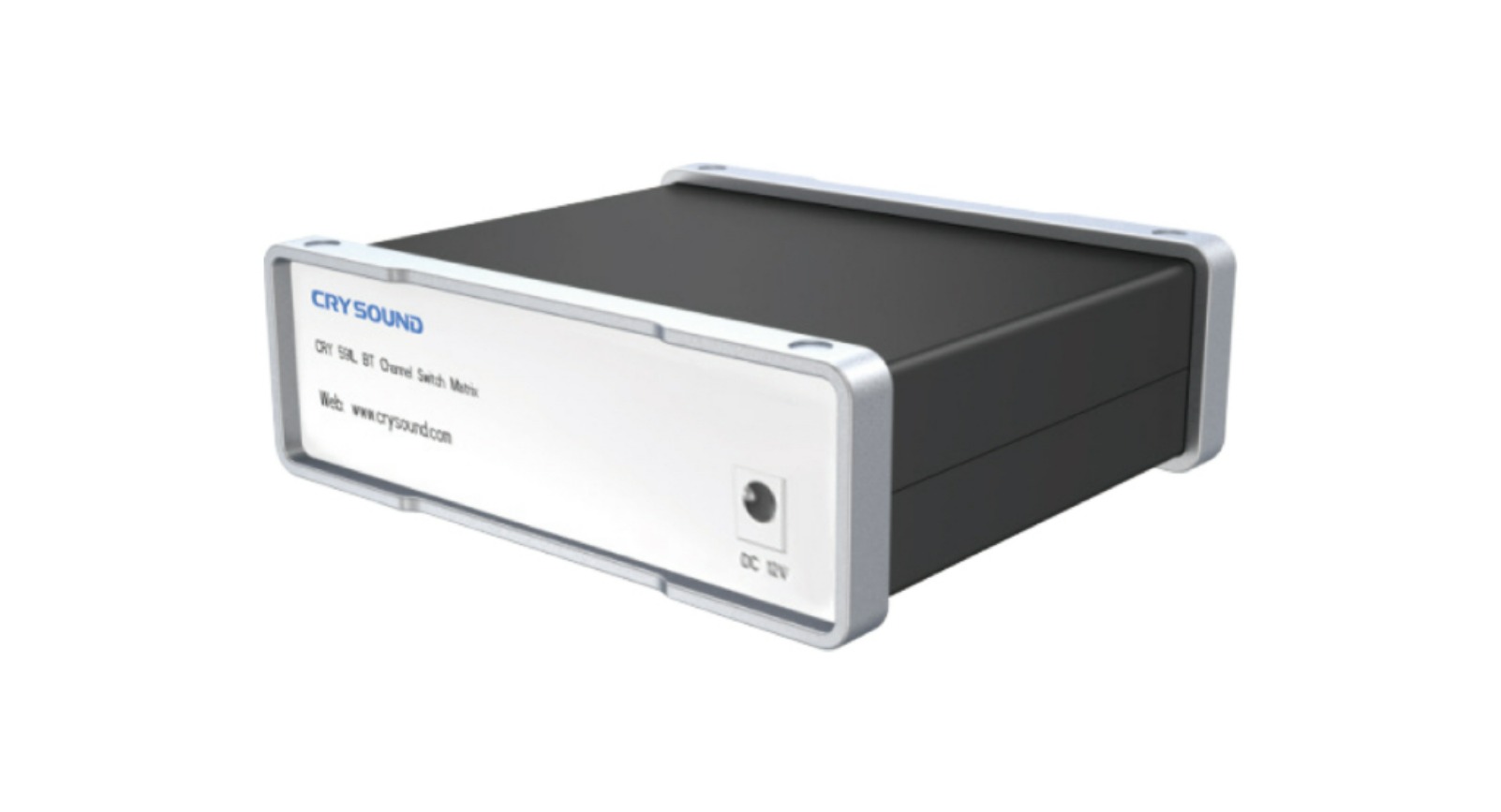

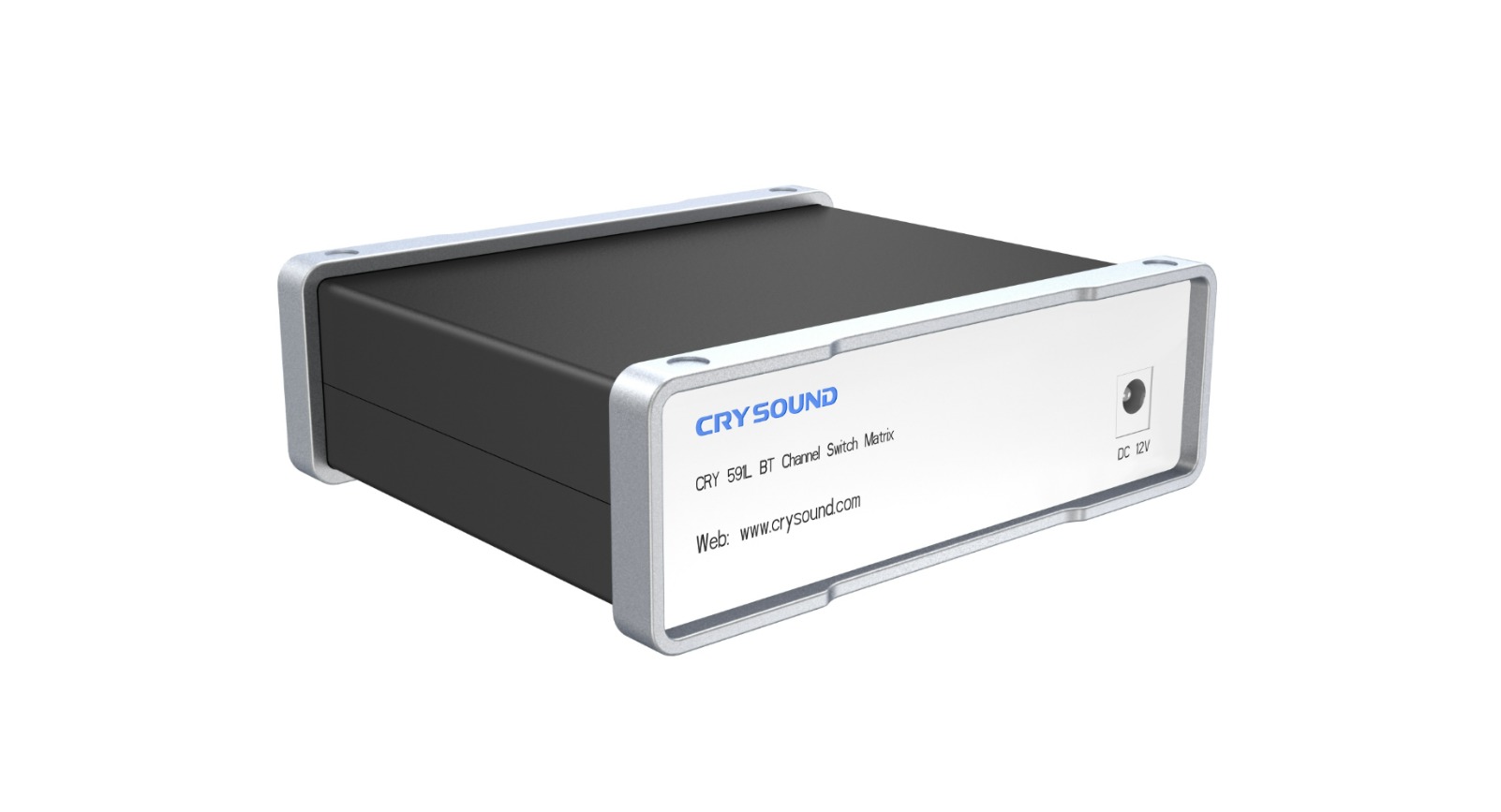

CRY591L Bluetooth Switch Matrix

CRY591L Bluetooth Switch Matrix

The CRY591L is our latest RF switch matrix, designed specifically for RF characterization testing of Bluetooth® headset PCBAs. It boasts exceptional RF performance and high stability, making it perfect for both research and development and production environments. This versatile switch matrix acts as a dynamic interconnection hub between test equipment—such as network analyzers, spectrum analyzers, Bluetooth testers, signal sources, receivers, and devices under test (DUTs)—enabling RF signals to be routed through multiple configurable paths.

  • Ultra-wide frequency range
  • Excellent performance in RF
  • Compact, space-saving and easy installation
  • 12V power supply

Features
  • PC interface for connection, original imported chip of FT232RL for stable connection.
  • USB Type-C for easy connection.
  • Connector type: SMA.
  • RF switch type: SPDT.
Features
  • PC interface for connection, original imported chip of FT232RL for stable connection.
  • USB Type-C for easy connection.
  • Connector type: SMA.
  • RF switch type: SPDT.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Specifications
Dimension
Dimension
104*120*42mm
Working band
Working band
DC-18GHz
Working temperature
Working temperature
-25℃~65℃
Service Life
Service Life
5000000 cycles
Impedance
Impedance
50Ω
Switch time
Switch time
≤20ms
Cable loss(800MHz-6GHz)
Cable loss(800MHz-6GHz)
<0.5dB
Isolation(800MHz-6GHz)
Isolation(800MHz-6GHz)
>85dB
VSWR(800MHz-6GHz)
VSWR(800MHz-6GHz)
<1.15
