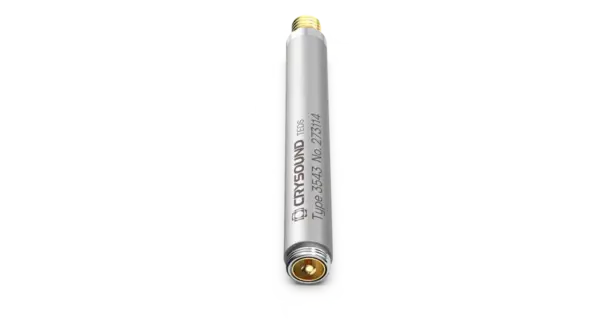

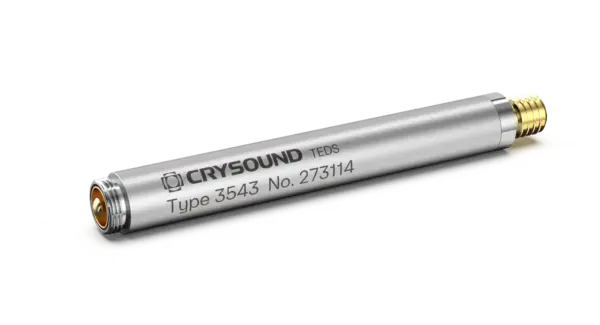

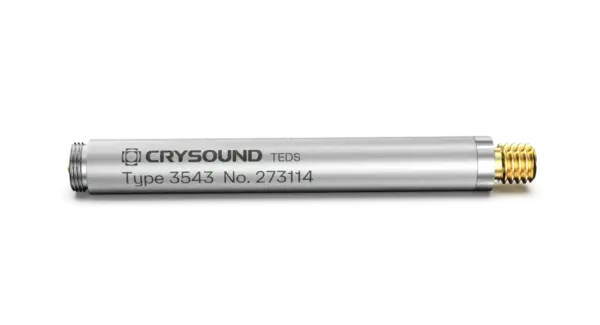

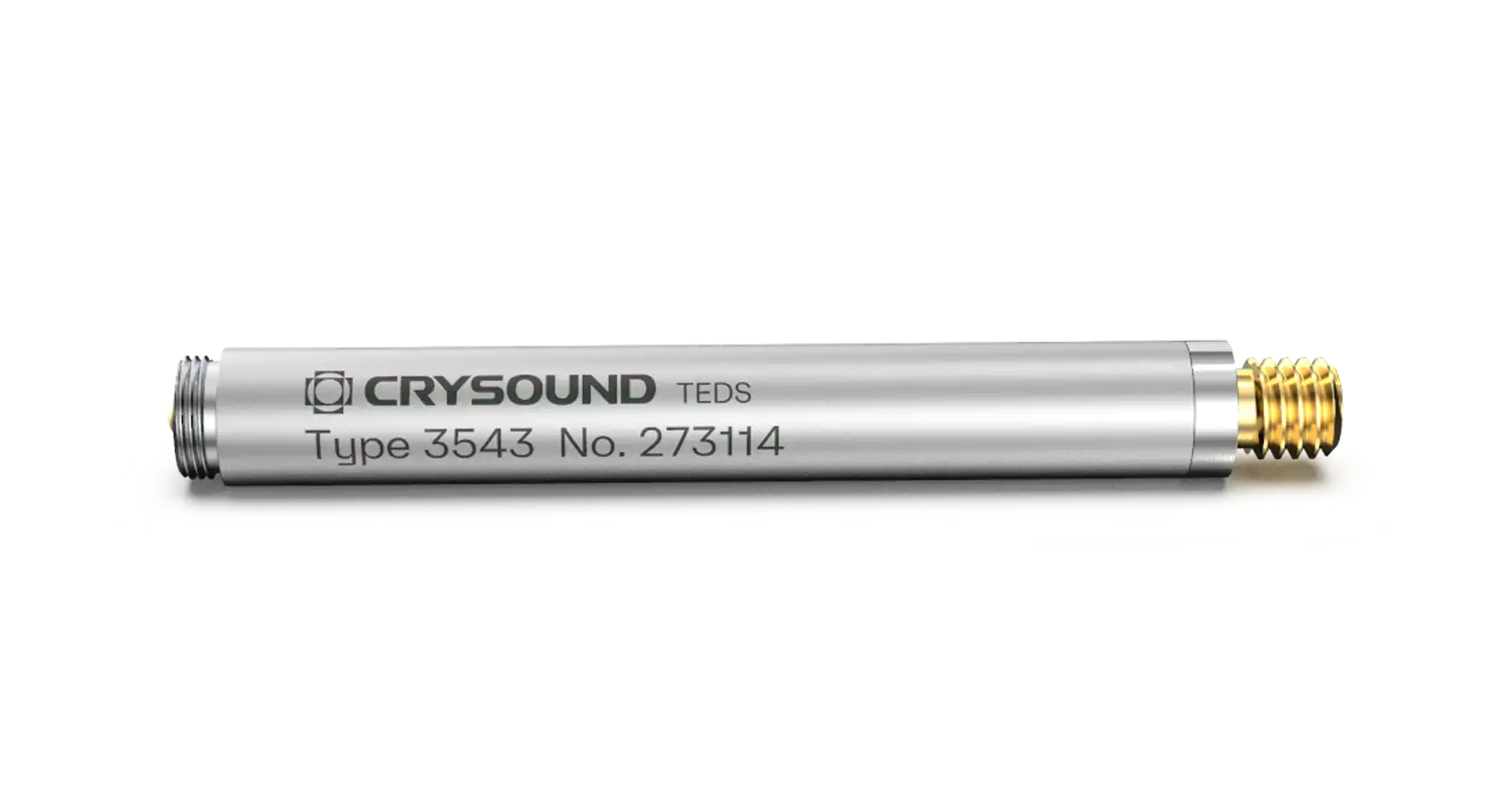

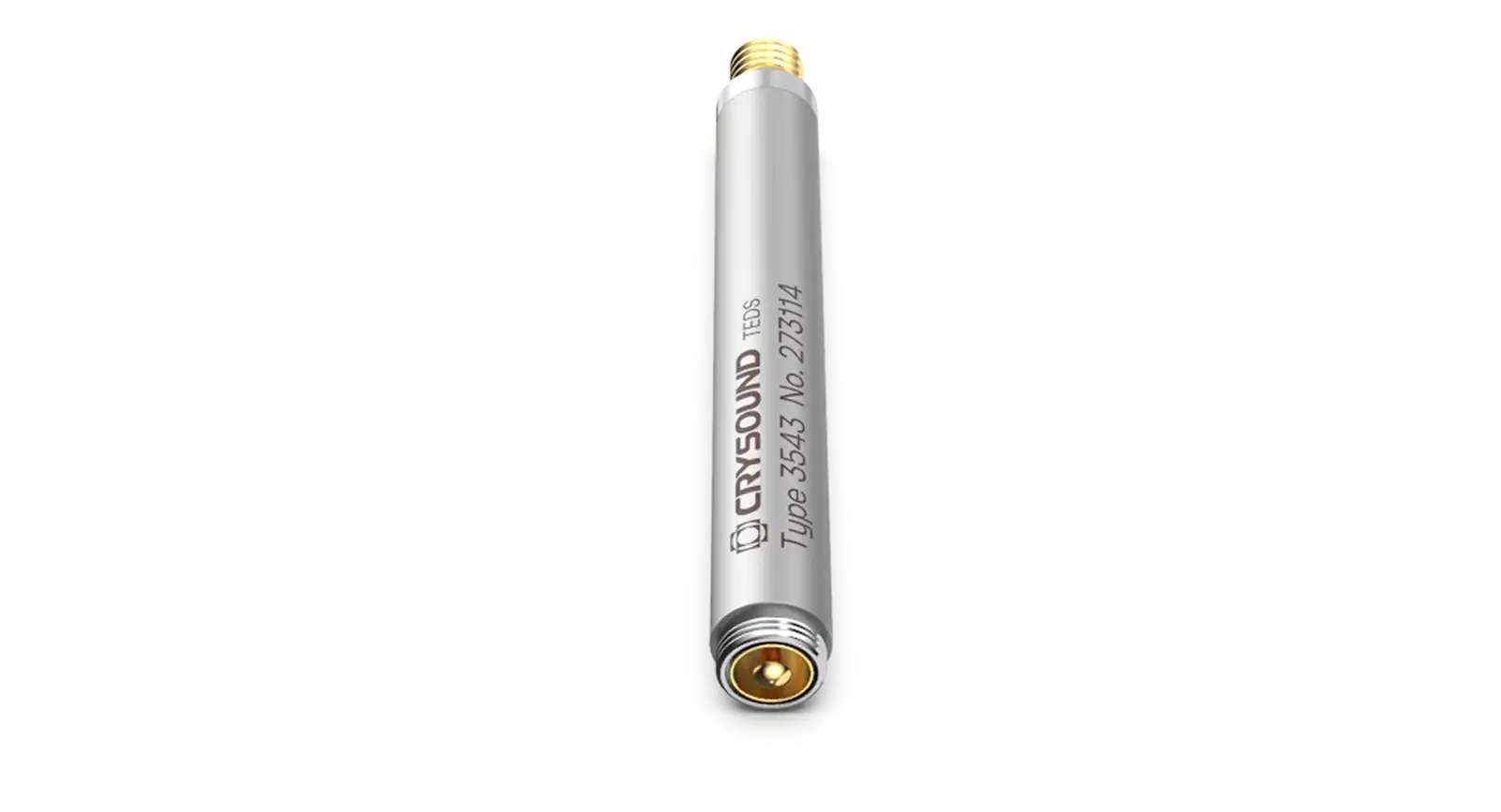

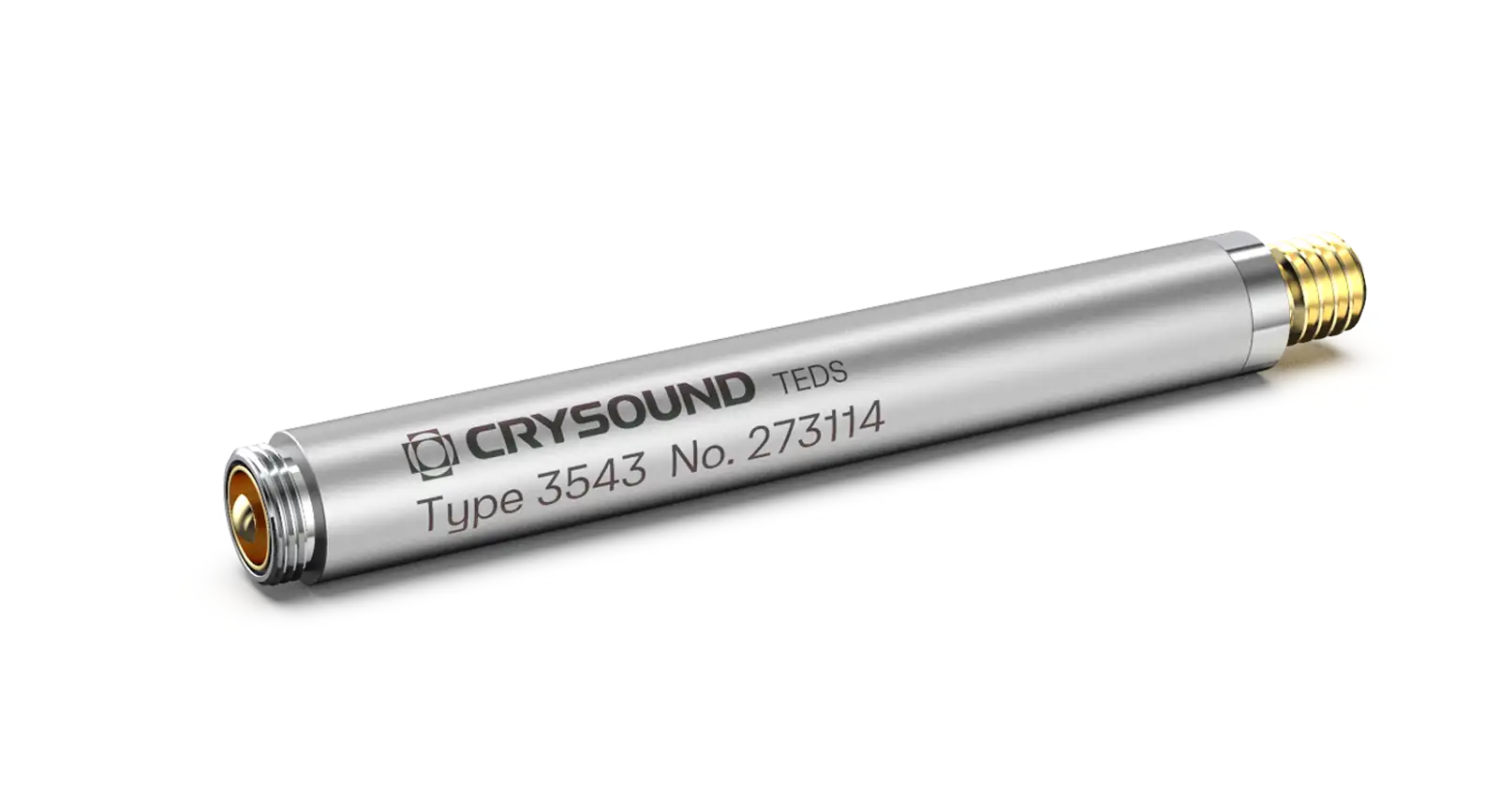

CRY3543 1/4" Preamplifier, IEPE, Microdot Connector

CRY3543 1/4" Preamplifier, IEPE, Microdot Connector

The CRY3543 is a constant-current power preamplifier that can be used with the CRY3000 series 1/4 inch prepolarization measuring microphone and is widely compatible with other brands.

By converting high-input impedance to low output impedance, the CRY3543 allows the use of longer extension cables. It offers exceptionally low background noise, ensuring minimal impact on the microphone’s performance. Its TEDS functionality further enhances efficiency by reducing test time. With a robust design and high durability, it is well-suited for a broad range of environmental conditions.

  • High input impedance, low output impedance
  • 10-32UFN (M5/Microdot) Interface
  • Supports “Smart Transducer Interface” IEEE 1451.4 containing TED
  • Low background noise
No items found.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Technical Specification
Frequency Response Range
Frequency Response Range
10Hz to 100kHz( ±0.2dB)
Input Impedance
Input Impedance
>2GΩ / 50pF
Output Impedance
Output Impedance
<20Ω
Distortion (THD)
Distortion (THD)
<0.1%
Max Output Voltage
Max Output Voltage
>5.0 Vrms (power supply for +24V)
Power Supply
Power Supply
IEPE (2mA-10mA)
Nominal Operating Current
Nominal Operating Current
4mA
Noise, A-weighting
Noise, A-weighting
< 3μVrms
Noise, linearity (20 ~ 20kHz)
Noise, linearity (20 ~ 20kHz)
< 10μVrms
DC bias voltage
DC bias voltage
12V±2V
Temperature
Temperature
-30℃ to +70℃(-22 to 158 °F )
Threaded Coupling
Threaded Coupling
5.7mm-60 UNS
Diameter
Diameter
6.35mm(0.25'')
Length
Length
53.5mm(2.11'')
Connector Type
Connector Type
10-32UNF(M5/Microdot)
